Commercial Gas Deck Oven

Application:
The Honglian commercial gas deck oven is designed for the baking of various food products, such as breads, cakes, biscuits, and much more. The multi-level ovens are great for retail bakeries, restaurants, hotels, and industrial baking operations.

Types:

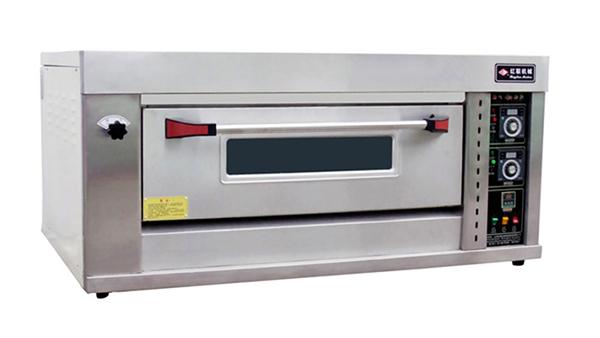

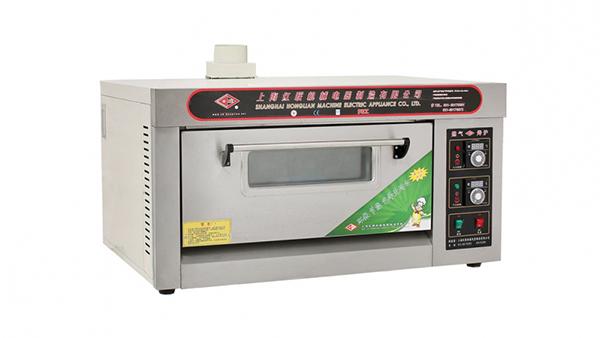

Single Deck One Tray Gas Commercial Bakery Oven
Single Deck 2 Tray Gas Commercial Bakery Oven

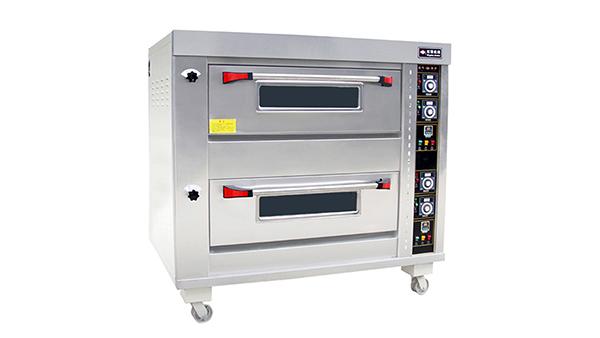

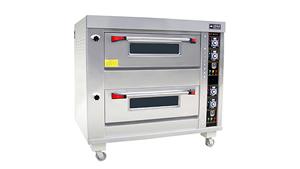

2 Deck 4 Tray Gas Commercial Bakery Oven

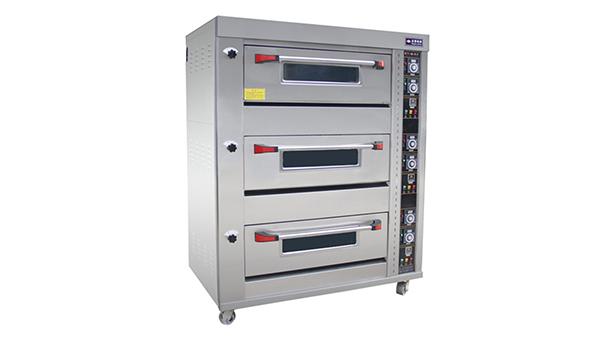

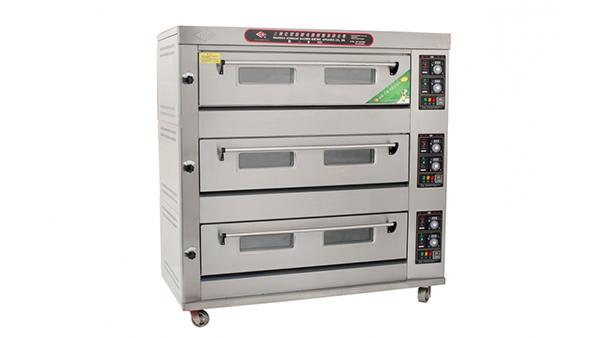

3 Deck 6 Tray Gas Commercial Bakery Oven
3 Deck 9 Tray Gas Commercial Bakery Oven

Parameters:

Single Deck One Tray Gas Commercial Bakery Oven

Model: YXY-10
Capacity: 1 tray
Exterior Dimension: 970×680×500 mm
Tray Dimension: 500×600 mm
Gas consumption: 0.2 kg/h
Voltage: ~220V
Power: 0.1 kw
Net Weight: 70 kg


Single Deck 2 Tray Gas Commercial Bakery Oven

Model: YXY-20
Capacity: 2 trays
Exterior Dimension: 1300×820×600 mm
Tray Dimension: 400×600 mm
Gas consumption: 0.2 kg/h
Voltage: ~220V
Power: 0.1 kw
Net Weight: 175 kg


2 Deck 4 Tray Gas Commercial Bakery Oven

Model: YXY-40
Capacity: 4 trays
Exterior Dimension: 1300×820×1300 mm
Tray Dimension: 400×600 mm
Gas consumption: 0.6 kg/h
Voltage: ~220V
Power: 0.2 kw
Net Weight: 220 kg


3 Deck 6 Tray Gas Commercial Bakery Oven

Model: YXY-60
Capacity: 6 trays
Exterior Dimension: 1300×820×1720 mm
Tray Dimension: 400×600 mm
Gas consumption: 0.9 kg/h
Voltage: ~220V
Power: 0.3 kw
Net Weight: 315 kg


3 Deck 9 Tray Gas Commercial Bakery Oven

Model: YXY-90
Capacity: 9 trays
Exterior Dimension: 1700×820×1720 mm
Tray Dimension: 400×600 mm
Gas consumption: 1.2 kg/h
Voltage: ~220V
Power: 0.3 kw
Net Weight: 430 kg

Product configuration:
*The commercial gas deck oven can be equipped with a mechanical or digital panel, so that the operation is simple and convenient. This oven is practical and easy to use.
*Optional steel plate or stone plate.

Features:
1. The maximum temperature of the commercial gas deck oven is up to 400 degrees.
2. It uses liquefied petroleum gas as fuel which is highly efficient and energy-saving. The operation is quite convenient as well.
3. The oven is equipped with a highly reliable igniter and fan so that it can realize rapid ignition.
4. The commercial gas deck oven is equipped with an automatic temperature control device; the top and bottom chambers are controlled separately by an independent burner; it can adjust the temperature separately and maintain the temperature automatically.
5. Pulse ignition coil and flame supervision system which has a high ignition capability. It also has the functions of unexpected flame-out protection and automatic alarming to prevent gas leakage.
6. Beautiful and well baked products thanks to high temperature reliability and space.

Honglian introduction:
1. Honglian's primary specialty is the production of ovens. We have more than 20 years of production experience culminating in products with high quality and reliability.
2. Honglian has obtained CE certificate for our products. They have been exported to many countries, especially Russian-speaking countries.
3. We can provide customization for functions and materials according to the requirements of our customers. The voltage, power and plug etc. can all be specially designed and installed.

Honglian offers a wide range of commercial food processing equipment with custom design service. Here as a commercial gas deck oven manufacturer and supplier, we are offering kitchen and restaurant equipment, such as bakery ovens, food frying machine and commercial roasting equipment. From design, manufacture to quality control, our company offers top priority commercial gas oven and customized food machinery upon request.
