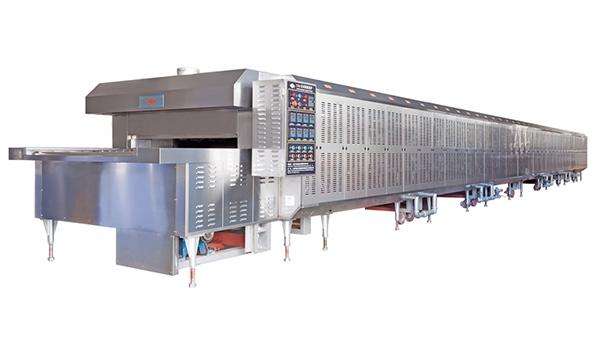

Drying Tunnel Oven

The drying tunnel oven is suitable for drying of different kinds of food, crude medicine and industrial products.

Parameters:
Type Electric Gas
Model YSD YSY
Exterior Dimension 10000×2250×1500 mm (the length can be customized) 10000×2250×1500 mm (the length can be customized)
Furnace Dimension 1400×1500 mm 1400×1500 mm
Tray Dimension 400×600/460×720 mm 400×600/460×720 mm
Gas Consumption / 0.6 kg/m
Voltage 3N~380V 3N~380V
Power 12-18 kw/m 0.3-0.5 kw/m
Net Weight 650 kg/m 650 kg/m

Product configuration:
We can provide customized options for the drying tunnel oven, including electric powered, liquefied petroleum gas (LPG) powered, and natural gas powered. The machine length and width can also be customized to meet client requirements for production capacity.

Features:
1. The drying tunnel oven is a large-scale equipment that offers a continuous drying process, and is easily attached to an existing production line. It not only saves labor, but features an outstanding production efficiency.

2. The heater at the top and bottom can be controlled separately. Variable speed drives and stepless speed regulation can be set based on the drying time of different products.

3. This oven features over-temperature protection and alarming, ensuring a top of the line safety performance.

4. The operation system uses an easy to control intelligent control, thus preventing more incorrect operation.

Honglian introduction:
1. We can design this equipment according to actual production requirements provided by our customers. All dimensions, functions and materials are customizable.

2. Honglian has several years of design and production experience for tunnel ovens, and we have exported them all over the world to Indonesia, Canada and other locations.

3. We can arrange for our technicians to visit your location to carry out installation and debugging.

Honglian offers a wide range of commercial food processing equipment with custom design service. Here as a drying tunnel oven manufacturer and supplier, we are offering kitchen and restaurant equipment, such as bakery ovens, food frying machine and commercial roasting equipment. From design, manufacture to quality control, our company offers top priority commercial drying tunnel oven and customized food machinery upon request.
